Chapter 3. Virtualization 99
Draft Document for Review May 12, 2014 12:46 pm 5102ch03.fm
Using these options, an user can deploy a system, select a system template, and click
Deploy. After deploying a system, an user can choose a partition template from the library.

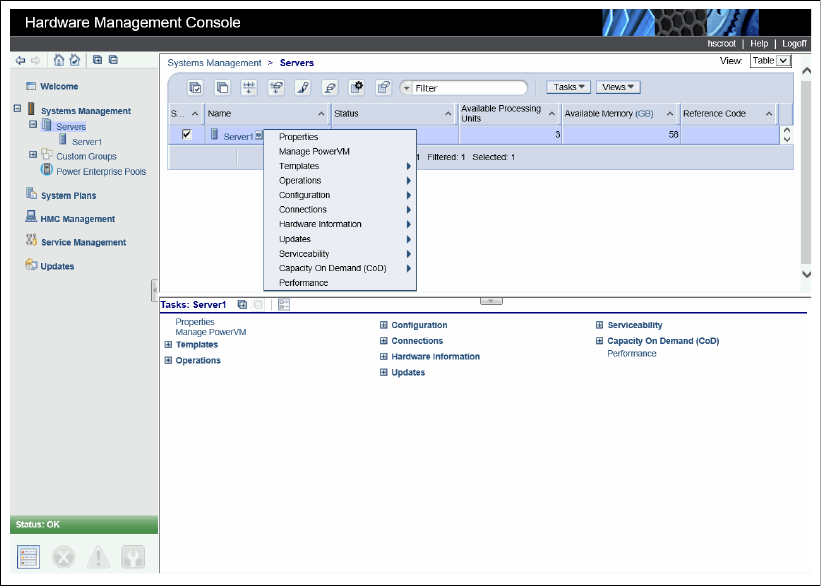

Figure 3-11 PowerVM new level tasks
